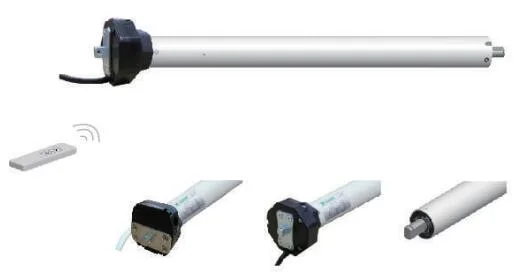

![(S45RM) 45mm Oct 60 Smart Remote Tubular Motor for Shutter Window](https://img2.grofrom.com/antai/e90afc226adaa740d791a262591f340d.webp)
Remote Control With Manual Override
Mechanical End Stroke
Serie Ø45RM For Octagonal Tubes 60mm, with both Built-in Radio Receiver And Manual Override | |||||||||
45RM,. | |||||||||
Articolo Item | Modello Model | Rulli Oct tube | Alimentazione Power Supply | Coppia Torque | Velocita Speed | Potenza asscrbita Absorbed power | Corrente assorbita Current consumption | Giri finecorsa Limit Switch Rotation | Misura dimension |
mm | Nm | giri/min. rpm | W | A | C (mm) | ||||
300.620.15RM | S45RM-20/15 | 60 | 230V AC/50Hz | 20 | 15 | 156 | 0.68 | 22 | 624 |
300.630.15RM | S45RM-30/15 | 60 | 230V AC/50Hz | 30 | 15 | 204 | 0.9 | 22 | 664 |
300.650.12RM | S45RM-50/12 | 60 | 230V AC/50Hz | 50 | 12 | 220 | 1.00 | 22 | 704 |
![(S45RM) 45mm Oct 60 Smart Remote Tubular Motor for Shutter Window](https://img2.grofrom.com/antai/a557725d89002c2578752adad4f4e643.webp)
![(S45RM) 45mm Oct 60 Smart Remote Tubular Motor for Shutter Window](https://img2.grofrom.com/antai/9722dd00cadf208cca97e53e2fb7b74f.webp)
With 16-year experience in roller shutter field, we, SIGATE GROUP, can professionally provide you with :
1. Full range of roller shutter accessories.
2. Tubular motors 35mm, 45mm, 59mm and 92mm, Central Motors.
3. Insect Screens System and components.
4. Extruded Aluminum Profiles.
Company website:
http://nbsigate.en.made-in-china.com
Catalog download link:
http://nbsigate.en.made-in-china.com
We're always at your service !
